IEC 62368-1 Clause 5.4.2 20KV Impulse Voltage Generator And Voltage Waveform Attenuator Test Equipment

Name: IEC 623681 Clause 542 20KV Impulse Voltage Generator And Voltage Waveform Attenuator Test Equipment
Brand: Sinuo
Price: 1 USD

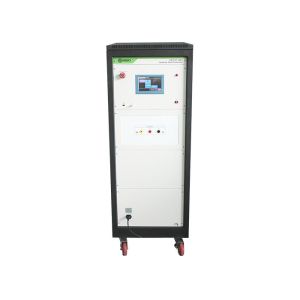

Cheap IEC 62368-1 Clause 5.4.2 20KV Impulse Voltage Generator And Voltage Waveform Attenuator Test Equipment for sale

Brand Name : Sinuo

Model Number : SN1104-20KV

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10 sets per month

Delivery Time : 25 Days

Packaging Details : Plywood case

High peak voltage : 2,500v~20,000v

Low peak voltage : 300V~2500V

Output polarity : Positive and negative

Impulse wavefront time : 1.2 µs ± 30 %

Half wave time : 50 µs ± 20 %

Instrument internal resistance : ITU-T K.44

Impact interval time : 10 ~ 99s

Impact cycles time : 1 ~ 9999

Contact Now

IEC 62368-1 Clause 5.4.2 20KV Impulse Voltage Generator And Voltage Waveform Attenuator Test Equipment

Product Information:

Standard: Conform to IEC 62368-1:2018 clause 5.4.2,5.5.8 and Annex D, circuit 1 and circuit 2 of Table D.1, Annex G.10, etc., IEC 60950-1:2013 clause 2.10.3.9, 5.2, reference 2 of table N.1, IEC 60950-1:2013 clause 6.2.2.1 and 7.4.3 reference 1 of table N.1, and etc.

Application: It is used to detect the transient over voltage of the components and the electrical clearance and the creepage distance.

Test sample: Household appliance, Audio, video and similar electronic apparatus.

Feature: The sample breakdown will produce a spark and acoustic, instrument peak voltage than the no-load voltage is decreased substantially (close to zero), when applying the same voltage in the next test, it will also show the above phenomenon.

Technical Parameters:

Model	SN1104-20KV
DC high voltage	Max. 20kV
Impulse voltage wave	Impulse wavefront time: 1.2 µs ± 30 %; Half value of after wave time: 50 µs ± 20 % Please note that the waveform should be checked on an external oscilloscope
Instrument internal resistance	Resistance matches ITU-T K.44
Peak voltage:	Low: 300V~2,500V; High: 2,500 V~ 20,000V
Impact interval time	10 ~ 99s
Impact cycles	1 ~ 9999
Polarity	Positive and negative
Working power source	Rated voltage: ~ 220V±10%, 50/60Hz
